WinTV-quadHD

Four HD Digital TV Tuners for PCIe!

WinTV-quadHD

WinTV-quadHD: Watch or record up to four TV programmes at a time!

WinTV-quadHD features:

  • Four tuners on one half height PCI Express board. WinTV-quadHD will fit in both full and half height PC's
  • Watch, pause or record up to four Freeview HD (DVB-T2), Freeview (DVB-T) or digital cable (DVB-C) TV programmes at the same time
  • Includes a Hauppauge remote control, with 1 meter IR receiver cable
  • Includes the latest WinTV application, which give you TV-in-a-window or TV full screen, plus picture-in-picture or four different live TV preview windows simultaneously
  • Also works with Windows Media Center (standard in Windows 7 and optional in Windows 8). The WinTV-quadHD is seen as 4 tuners in Windows Media Center to watch one channel or record up to four TV programmes at the same time.

Freeview HD (DVB-T2) over-the-air digital TV features:

  • Freeview (also called DVB-T2) is free over-the-air HD TV. Freeview HD is broadcast in the ANZ, SG, UK and some other countries in Europe, and does not require a subscription. Freeview HD is high definition digital TV and FREE!
  • WinTV-quadHD has four Freeview HD over-the-air digital TV tuners. Supports all Freeview HD formats, up to the highest HD format (MPEG-4 at 1080p30)
  • Watch, pause or record up to four Freeview HD digital TV programmes using high quality MPEG-4. TV recordings will typically consume 5 GB of disk space per hour for Freeview HD
  • Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels

Freeview (DVB-T) over-the-air digital TV features:

  • Freeview (also called DVB-T) is free over-the-air standard definition TV. Freeview (DVB-T) is broadcast throughout Europe, ANZ, SG & Malaysia and does not require a subscription
  • WinTV-quadHD has four Freeview over-the-air digital TV tuners
  • Watch, pause or record up to four Freeview HD digital TV programmes using MPEG-2. TV recordings will typically consume 2 GB of disk space per hour for Freeview
  • Built-in antenna splitter allows you to make one connection to an aerial but watch and record up to 4 channels

Freeview DVB-C digital cable TV features:

  • Freeview DVB-C digital cable HDTV receivers. Watch and record up to four High Definition freeview digital cable TV channels at the same time
  • Built-in cable TV splitter allows you to make one connection to cable TV
  • Note: not all cable TV networks provides freeview DVB-C channels. Please check with your local cable operator for the availability of freeview DVB-C digital cable TV programs

Note: the WinTV-quadHD is for digital TV only and does not support analog (PAL or NTSC) TV

If you need an analog TV receiver, any one of the WinTV-HVR products (such as the WinTV-HVR-935HD) include analog TV. The HVR stands for 'hybrid video recorder' and all WinTV-HVR's have both analog and digital TV reception.


WinTV-quadHD specification

WinTV-quadHD Technical Specifications

TV-Tuner:

  • DVB-T2 -High Definition digital terrestrial television (Free-to-air)
  • DVB-T - High Definition digital terrestrial television (Free-to-air)
  • DVB-C - digital cable TV (Free-view )
  • Receive all free-to-air or Freeview unencrypted channels

Connections:

  • TV antenna input IEC (female)
  • IR receiver input (2.5 mm jack)
  • PC interface: PCI-e x1, PCI-e standard 2.0
  • The WinTV-quadHD is a slim type board and it just fit nicely as per the PCI-e slot's width.

TV recording format:

  • *.TS (Transport stream) - original format without loss of quality

Dimension of the WinTV-quadHD board:

  • 148 mm x 68 mm (L x H)
  • Includes an additional half height bracket for mounting in form factor or Micro Desktop PC

Supplied software

  • WinTV v10, the new TV application for Windows with TV pause and recording. As WinTV-quadHD has four separate built-in digital TV tuners , it can support watching and recording upto four TV programs simultaneously.

  • check

    System requirements

      TV signal input feed

      • Ariel antenna (roof top antenna) for free-to-air digital terrestrial television DVB-T/T2
      • Cable TV connection for free-view digital DVB-C television

      Operating system:

      • Windows 10 (32-bit / 64-bit)
      • Windows 8.1 (32-bit / 64-bit)
      • Windows 8 (32-bit / 64-bit)
      • Windows 7 (32-bit / 64-bit)
      • Windows Vista (32-bit / 64-bit)
      • Support on Linux using 3rd party App

      System specs

      • For DVB-T/T2: Intel Core i3 CPU mit 2.4 GHz or higher
      • For DVB-C: Dual-Core CPU with 2.4 GHz or higher
      • Graphics card with at least 128 MB memory
      • Sound card or onboard-sound
      • One free PCI Express slot (x1)
      • Internet connection for WinTV software download and activation

    Model numbers

    model 01607/01629: WinTV-quadHD: with four DVB-T2, DVB-T and DVB-C tuners, includes half height and full height brackets, WinTV application, IR receiver and Hauppauge remote control.

    Note1:

    The model 01607 package comes with an additional Duch language quick intsall guide.

    Note2:

    The WinTV-quadHD model 01609 is for receiving the ATSC/QAM digital TV programs broadcasting in the USA, Canada & South Korea. It doesn't support the DVB-T or DVB-T2 digital TV broadcasting standard used in Australia, New Zealand, Singapore and Malaysia or any other regions where the digital TV broadcasting system is of different from ATSC or QAM.

    WinTV-quadHD Videos

    WinTV v10 Installation
    click to play video
    WinTV v10 Introduction
    click to play video
    Four tuner Picture-in-Picture
    with the WinTV-quadHD
    click to play video
    Scheduled recording with the built-in EPG
    in WinTV v10
    click to play video
    WinTV v10 scheduling recordings with TitanTV
    click to play video
    Wipe out your channel database and
    rescan for channels
    click to play video
    Having a problem with Windows Defender
    Anti-virus when installing? Here's how to
    temporarily turn off Defender
    click to play video

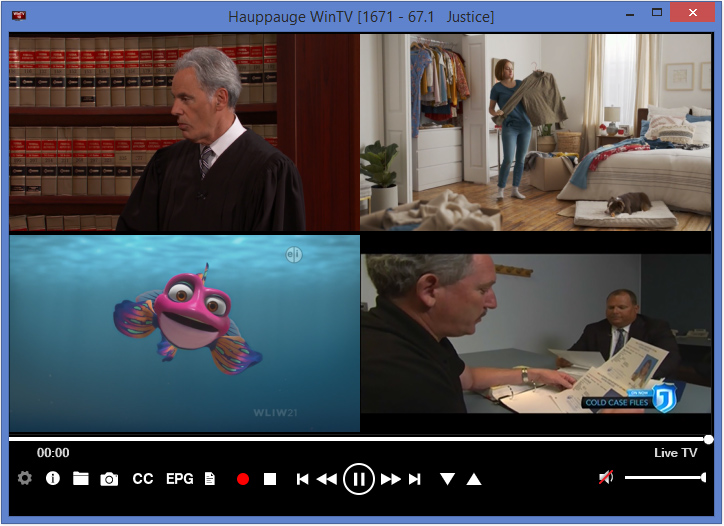

    Four tuner picture-in-picture Four tuner picture-in-picture
    WinTV v10 Now/Next WinTV v10 Now/Next
    WinTV v10 main menu (context menu) WinTV v10 main menu (context menu)
    WinTV v10 Electronic Program Guide (EPG) WinTV v10 Electronic Program Guide (EPG)
    WinTV-quadHD PCI-E board WinTV-quadHD PCI-E board
