USB-Live2

Analog Video Digitizer

USB-Live2

USB-Live2: USB video capture, display and DVD burning for your Windows PC

USB-Live2

USB-Live2 has S-Video and Composite video inputs, plus stereo audio

click to enlarge

Watch, capture or record live video from your VCR, camcorder or industrial video camera! USB-Live2 connects to any S-Video or composite video source and brings the video into your PC over USB.

Use USB-Live2 to convert your home video tapes into DVDs! USB-Live2 connects to any S-Video or composite video source and brings the video into your PC over USB. Plug the USB-Live2 into the USB port on your PC, plug the S-Video or composite video cables into your medical, industrial camera, VCR or analog video camera and you're ready to record analog video into your PC. USB-Live2 creates MPEG-2 video files, which can be burnt onto DVD or CD discs.

Xsplit and the Adobe Media Encoder can receive video from USB-Live2 for live streaming or over the Internet.

Add video clips to your web site: Creative webmasters can incorporate still frame highlights or motion video clips on their web sites!

Use USB-Live2 for desktop publishing: With our WinTV SnapShot function, you can quickly save JPEG images from your video camera.

USB-Live2 is the easiest way to record your old VHS video tapes

USB-Live2 is an external device which connects your VCR, camcorder or video camera to your PC or laptop. Plug the USB-Live2 into the USB port on your PC, plug the S-Video or composite video cables into your VCR or camcorder and you're ready to record your old video tapes to your PC.

USB-Live2 digitizes video using high quality 4:2:2 video sampling at up to 720p for the best analog video quality.

For Linux too

Hauppauge provides a PPA for Ubuntu to make the driver installation easier. Note: only a Linux driver is provided. We do not provide a Linux application with USB-Live2. See Linux Support


USB-Live 2 Features

USB-Live2

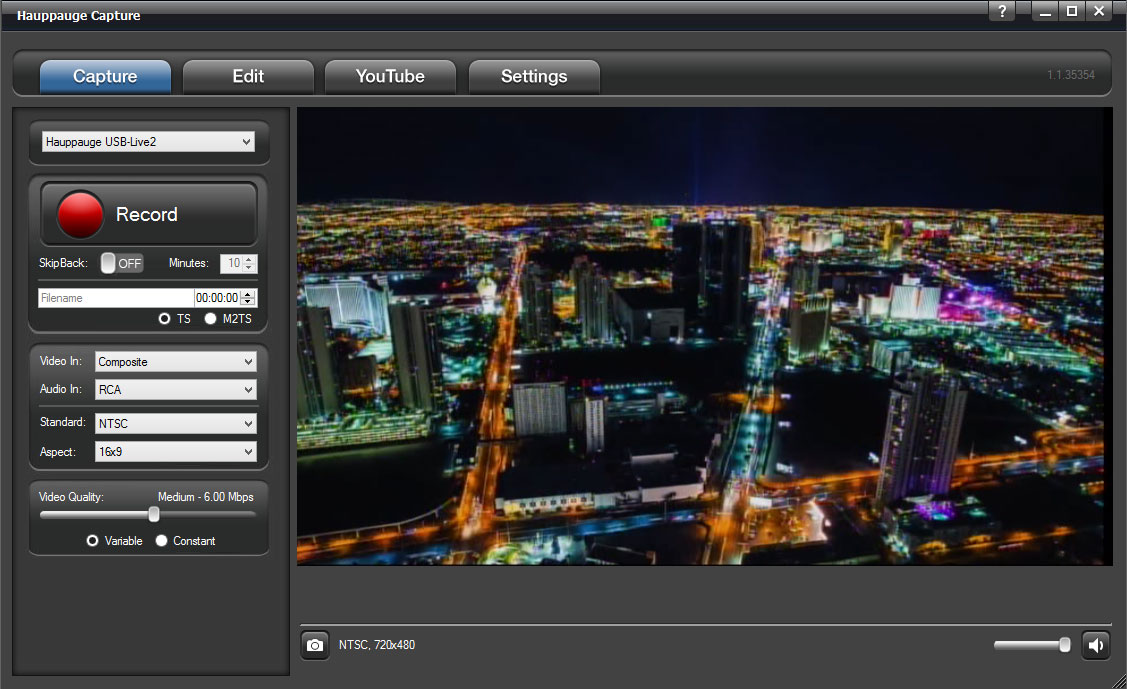

Hauppauge Capture gives USB-Live2 record, trim and YouTube upload functions

click to enlarge

Record video from analog video sources

USB-Live2 has analog video recording plus live video preview Use USB-Live2 to record your home video tapes, and to archive them on a DVD disk (disk burning software is not included).

USB-Live2 can be used in medical and industrial applications: connect to cameras and other instruments to record still or motion videos.

USB-Live2 has both Windows and Linux drivers. We also can provide a Windows API so you can develop your own video capture or video monitoring application.

Removable A/V cables makes it easy to connect

Leave the USB-Live 2 cables connected to your A/V source while moving the USB-Live2 to a different computer. The A/V cable set attaches to USB-Live2 with a secure latching connector.

USB-Live2 supports video up to 720p (NTSC sources) with S-Video, composite video and stereo audio.

Additional removable A/V cables are available from the Hauppauge webstore.

WinTV and Hauppauge Capture software's are included

  • Hauppauge Capture is the all-in-one recording, trimming and uploading app. Hauppauge Capture gives you timed recording, YouTube upload and stream (YouTube Live streaming and Twitch).
  • Includes Hauppauge's WinTV application with built-in scheduled video recording, so you can record videos and upload to YouTube. USB-Live2 attaches to Windows based laptop and desktop PCs for recording and streaming
  • Hauppauge Capture and WinTV applications are compatible with Windows 10, 8.1, 8 and Windows 7 (all versions).

USB-Live2 has a complete set of great features

Support for Windows and Linux

Full 720x480 live video and recording (NTSC)

Indicator LEDs showing that USB-Live2 is powered on and a video signal is present

Snap and print stills from whatever you're watching (BMP and JPEG supported)

Record video clips from your camcorder or VCR to create your own high-impact presentations

WinTV and Hauppauge Capture software's are included

Model numbers

Model 00610: USB-Live2 with WinTV and Hauppauge Capture application.

The WinTV application is for recording video and for capturing still images. Compatible with Windows 10, 8, 7 and Windows Vista.

USB-Live2 Specifications

Technical specifications

  • Video digitizer: 720x480 for NTSC, 720x576 for PAL video sources
  • Video source: S-Video or composite video
  • Audio input: left and right stereo audio
  • 50cm USB cable
  • Video capture format using WinTV: MPEG-2
  • Image capture format using WinTV: JPEG, BMP

System Requirements

  • PC with 2.8 GHz single-core or multi-core 1.8GHz.
  • Microsoft® Windows® 10, 8, 7 and Windows Vista
  • USB 2.0 port
  • Internet connection for software download and activation

Third Party applications

Adobe Flash Media Encoder Live
Discover Video Media Encoder

Stream your live video, video + screen, or screen-only along with your audio to viewers via the public Internet.

USB-Live2 Videos

The Hauppauge YouTube channel

How to setup USB-Live2 in WinTV v10
Click to play video
Hauppauge Capture and USB-Live2
Click to play video
USB-Live2 with OBS for streaming and recording
Click to play video
